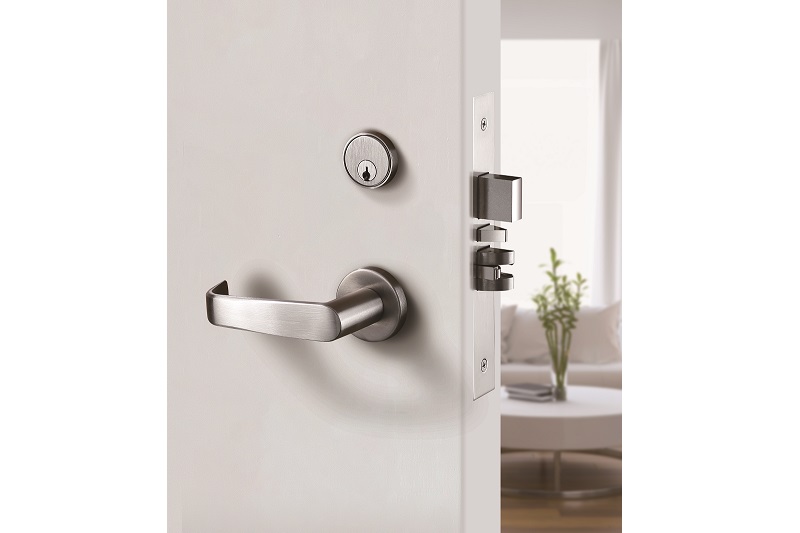

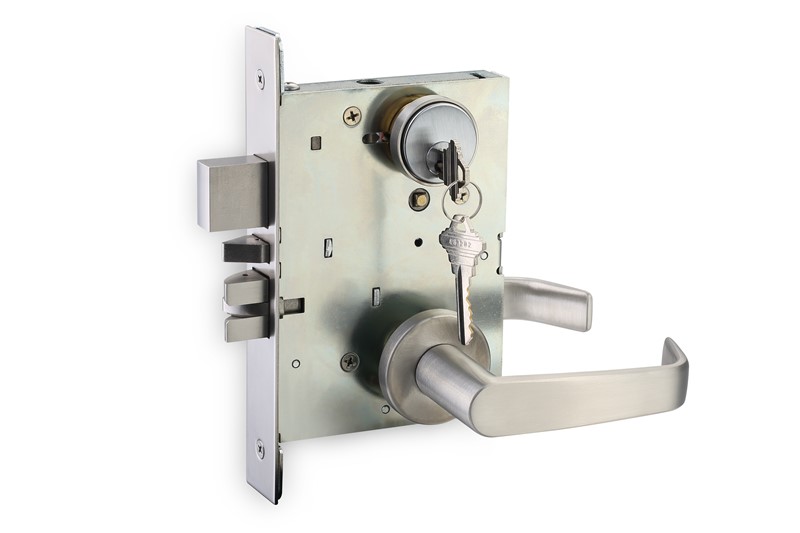

HARDWOOD's mortise lock DL series is certified to ANSI/BHMA Grade 1 standards and UL fire-tested for all functions. It offers maximum security, performance, and ensures durability and protection, making it ideal for schools, apartment housing and commercial buildings. Additional flexibility with the option of most standard architectural grade finishes and 10 functions.
Features
UL 10C certified
Compliant with ANSI/BHMA A.156.13 standard
Multiple functions, finishes, lever styles
Fit for wooden door and metal door
Provide long life and withstands abuse with a durable design of heavy duty components

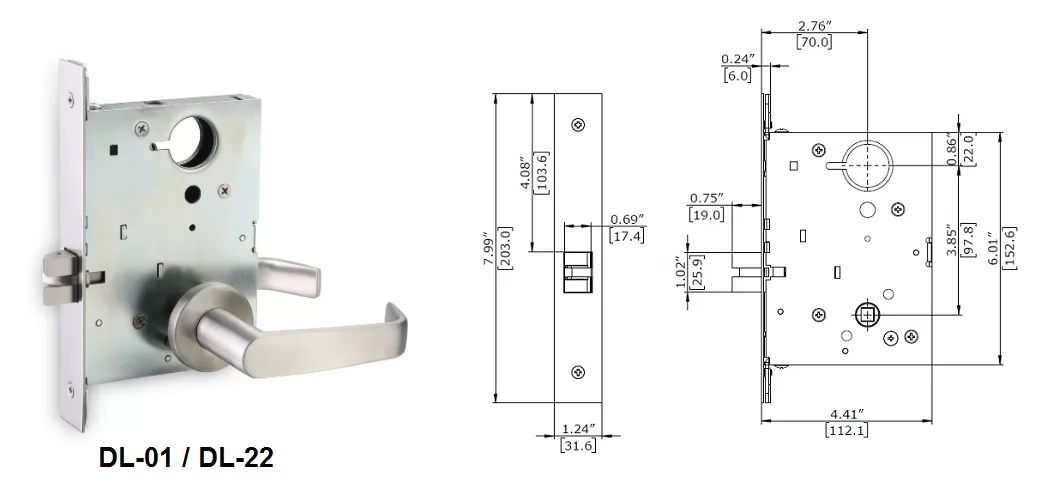

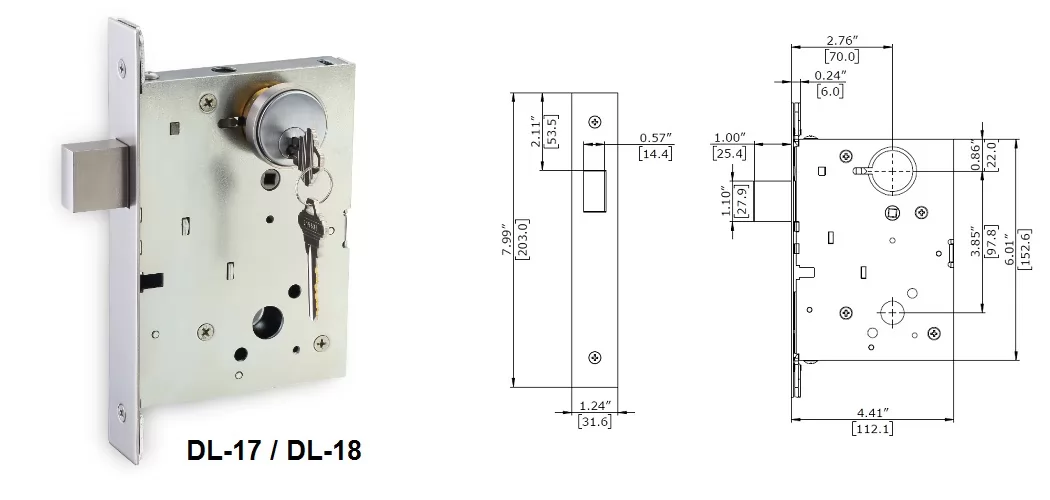

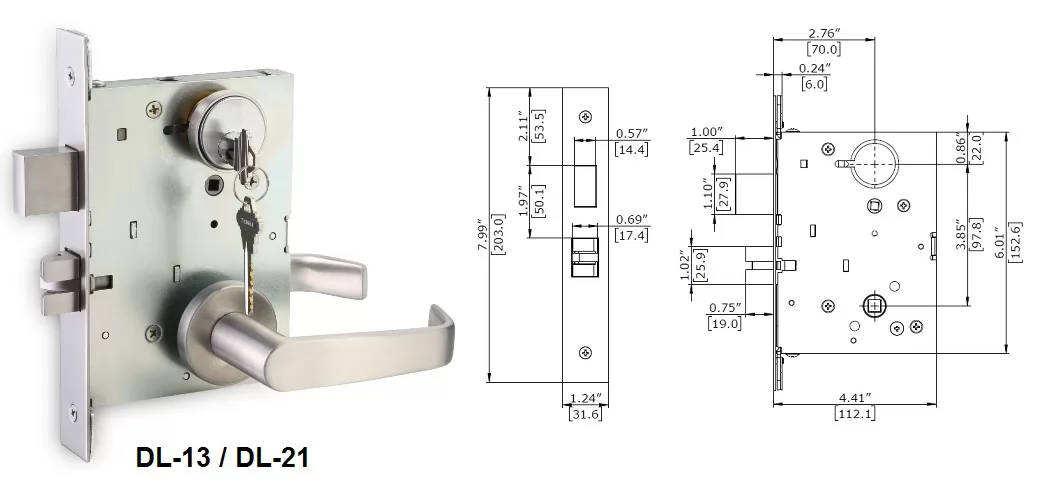

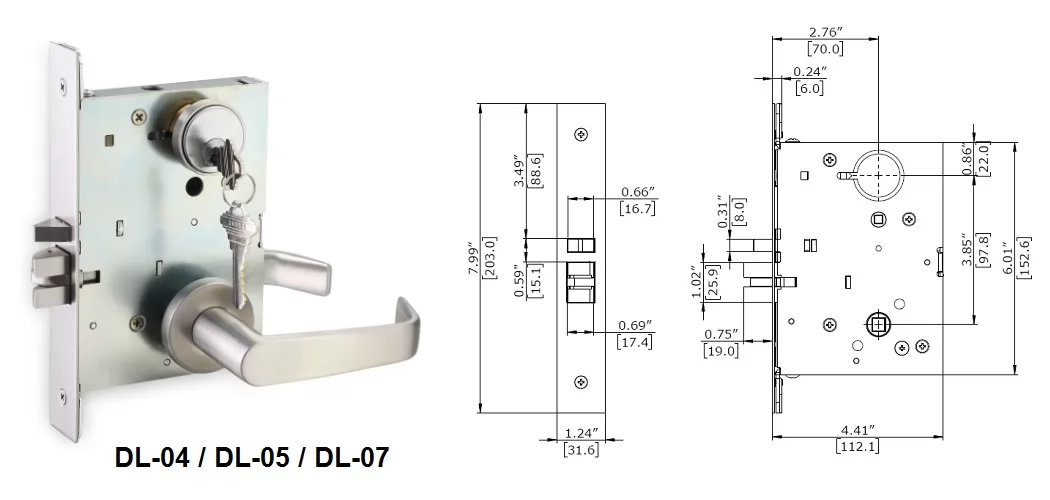

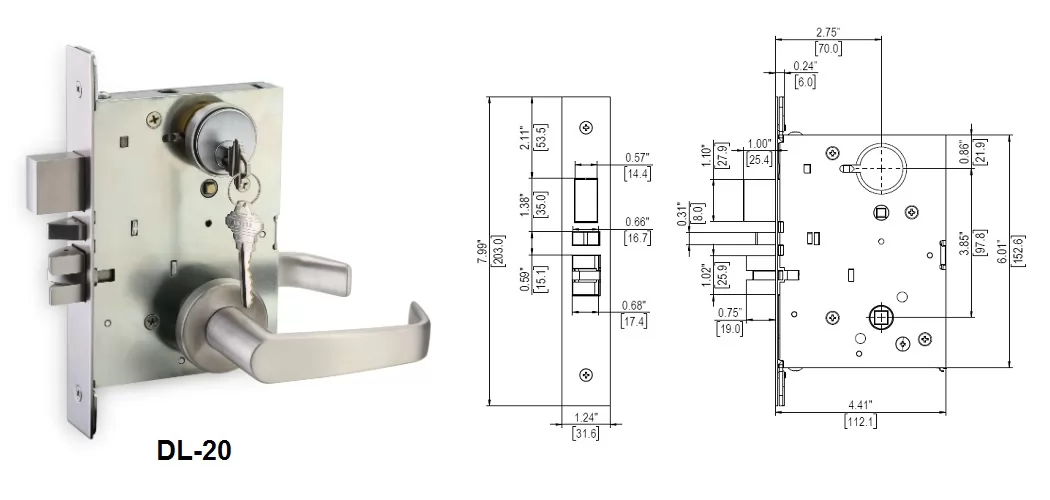

Backset Depth: 2 3/4"
Door Thickness: 1 3/4" - 2 1/6"
Latchbolt Throw: 3/4"
Deadbolt Throw: 1"
Number of Keys: 2
Strike Type: T-strike with curved lip
Materials
Stainless Steel

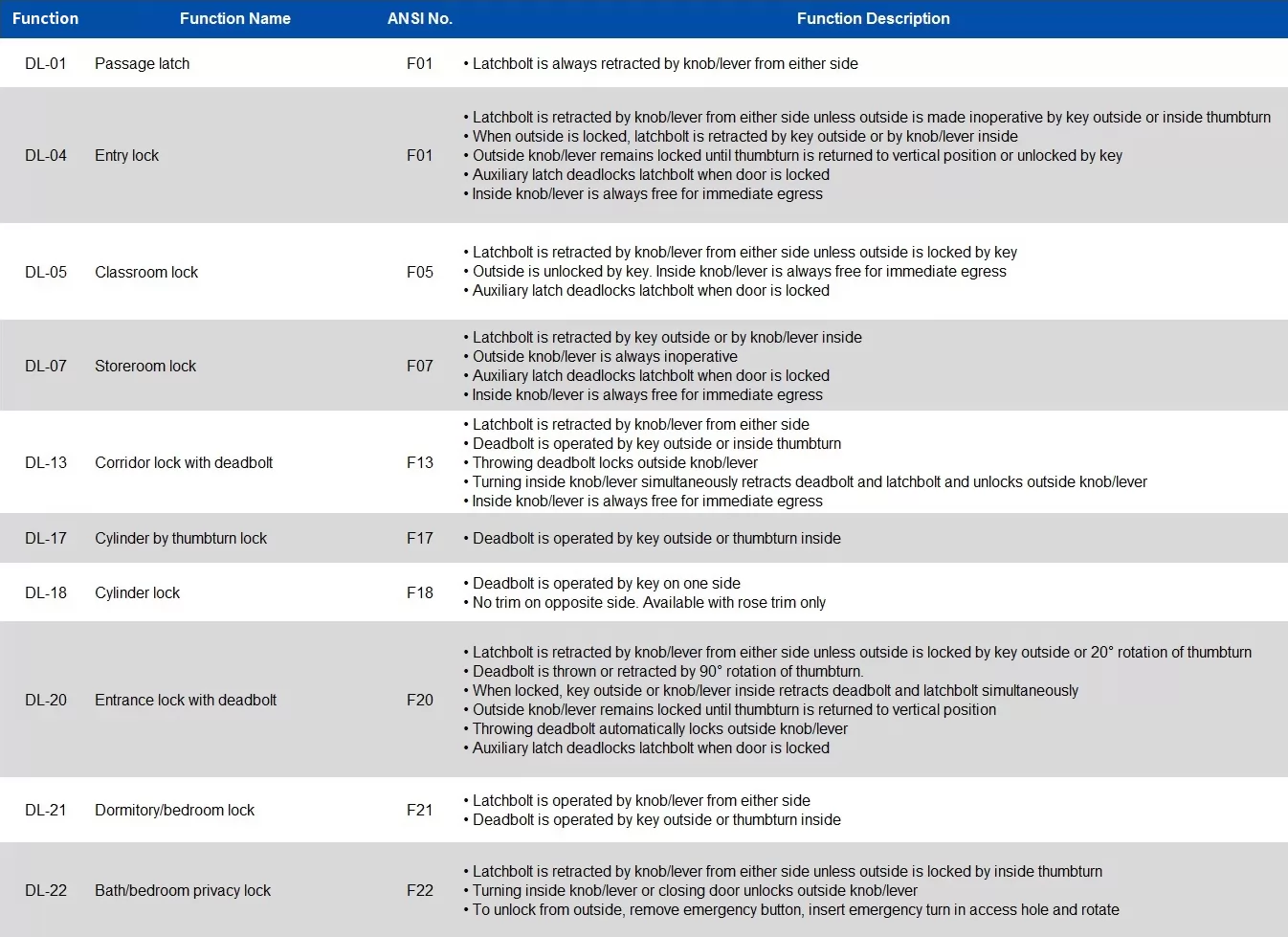

Functions

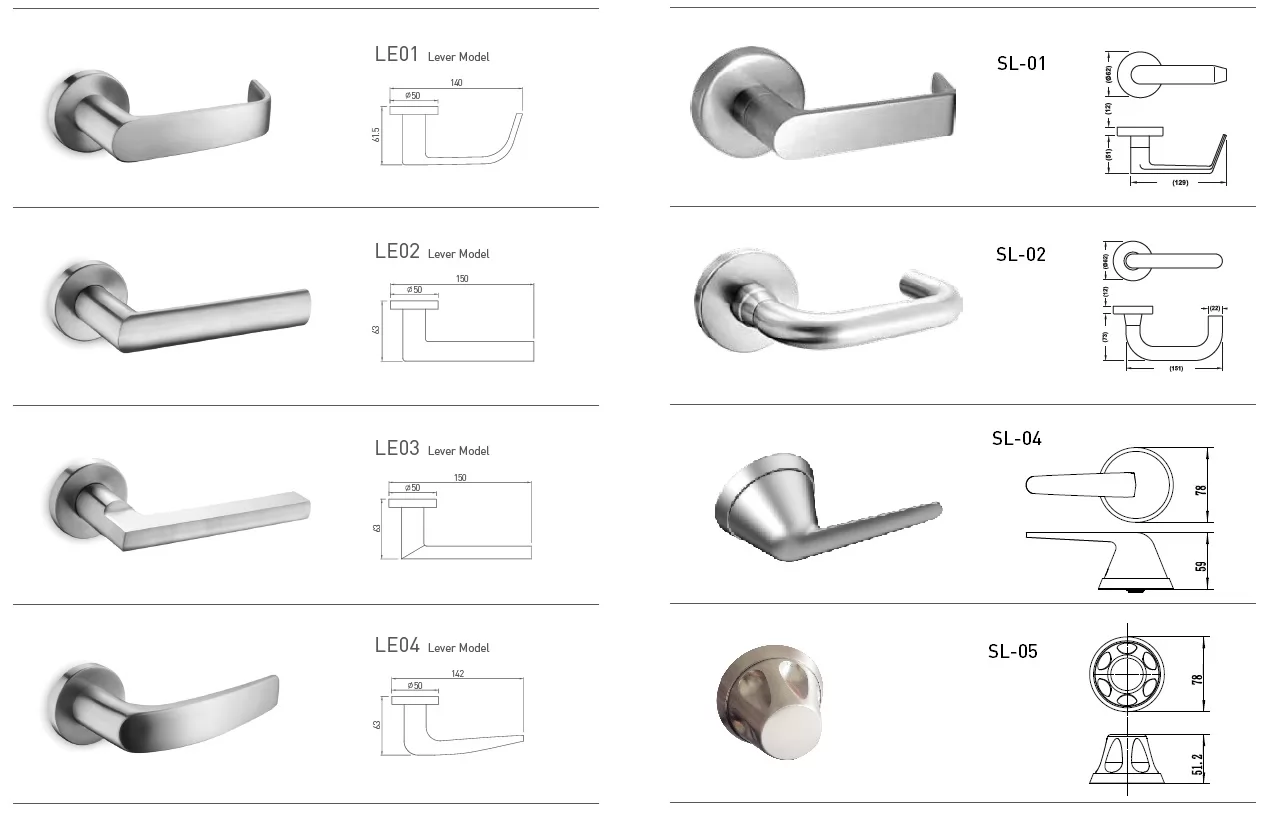

Lever Handle Options
Finishes
Available in standard architectural finishes
Downloads
DL Series Mortise Lock Installation Instruction
DL Series Mortise Lock Installation Template
