HARDWOOD's lock cylinder series is made of solid brass. This ANSI/BHMA Grade 1 mortise cylinder is in standard industry dimensions and can match most of mortise locks via different cams. Easy to replace.

 Features

  Type: Mortise Cylinder

  Mechanism: Standard

  Dimension: Length 1-1/8", Head Dia. 1.38", Head Thickness 0.16"

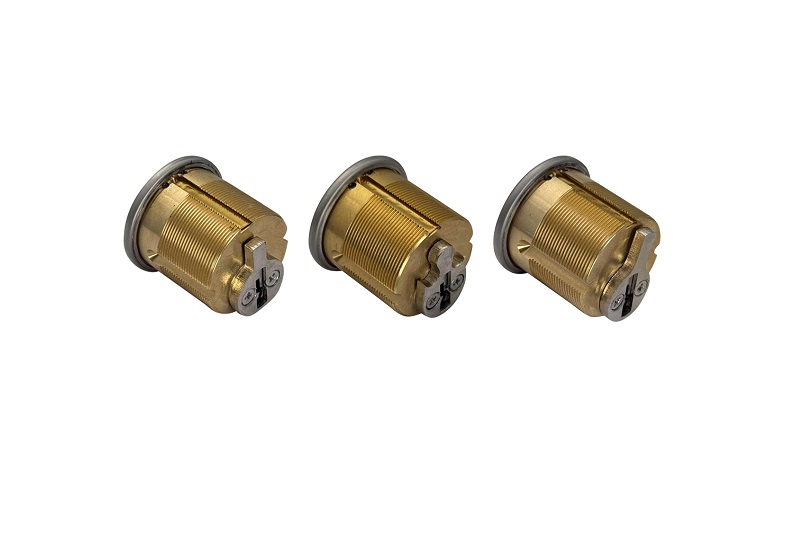

  Available Cams: YALE, SARGENT, SCHLAGE

  Key Way: Schlage C

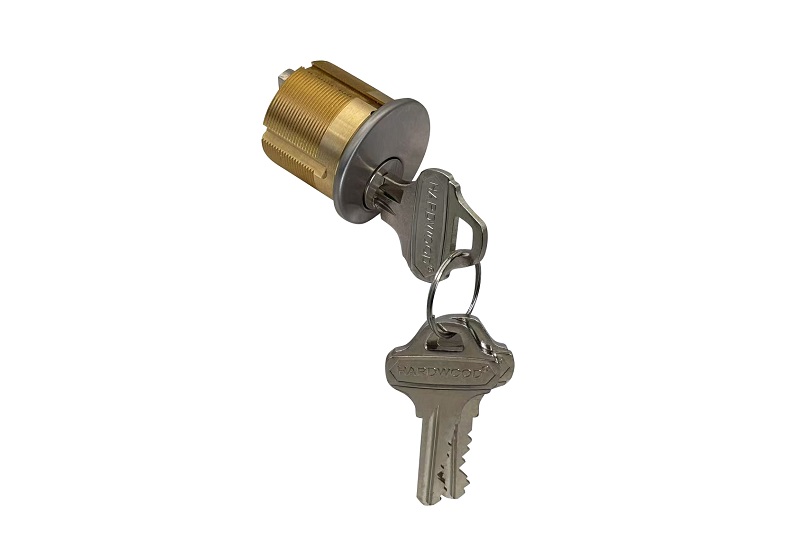

  6-pin /3 keys

  Easy replacement

 Certification

  ANSI/BHMA Grade 1

 Materials

  Solid brass

 Finishes

  Satin Nickle Plating
