Door Holders

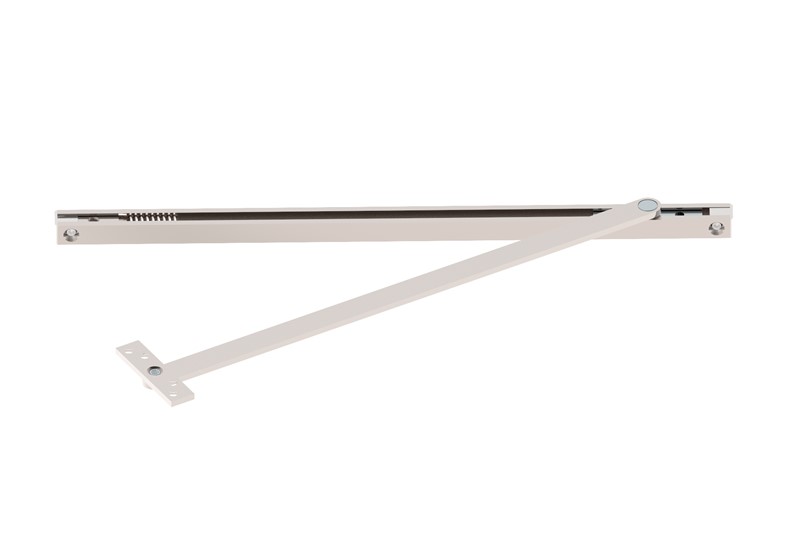

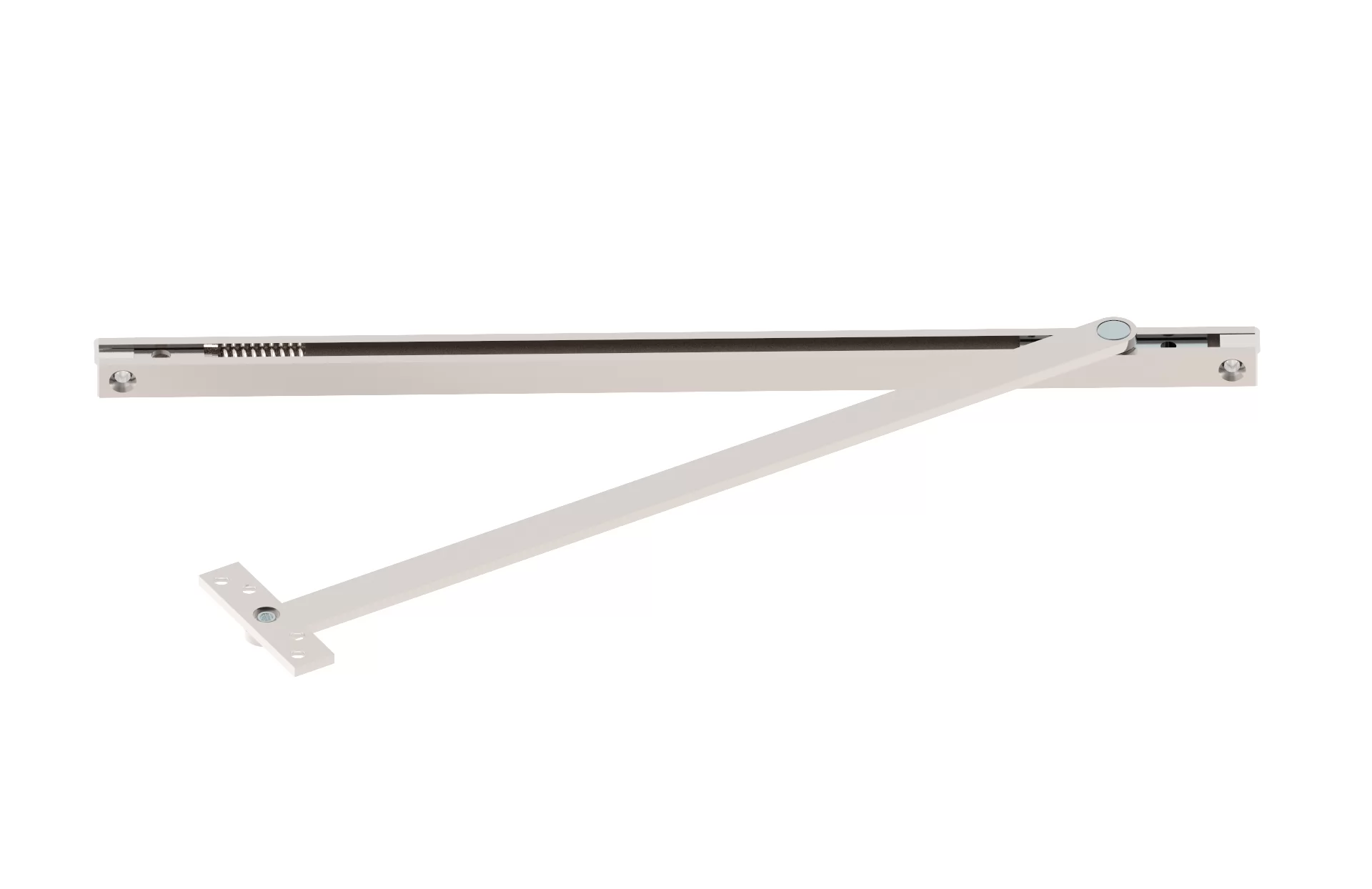

10000 Series Medium Duty Overhead Stop Surface Mount
10000 Series Medium Duty Overhead Stop Surface Mount
10000 Series Medium Duty Overhead Stop Surface Mount
10000 Series Medium Duty Overhead Stop Surface Mount
Product Description
Technical Data

Made from 304 stainless steel, the 10000 Series Medium Duty Overhead Surface Mount is designed to protect door and hardware from daily abuse found in commercial and institutional applications. Ideally suited for interior doors.



 Features
·Medium duty
·Surface mount
·Stop function
·Interior or exterior doors
·Single or double acting doors
·Non-handed
·110°maximum opening
·1-3/4"minimum door thickness


GL-15
GL-15
S40 - W/G 2401
 Material
Stainless Steel


 Available Finishes
US32D/US26D
Available in standard architectural finishes


 Downloads



OVS1000X-M
OVS1000X-M
OVS1000X-M
OVS1000X-M
